Standard subroutines

Standard subroutines are designed to calculate additional fields after the main simulation in QForm UK.

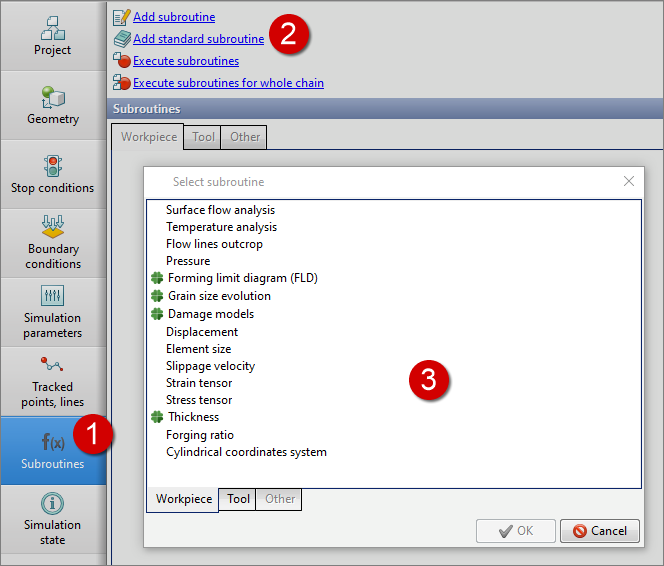

To add a standard subroutine to the calculation, click Add standard subroutine in the Subroutines tab of the Initial data panel. After that, select the required subroutine and press OK.

01_subroutines_standard

The fields calculated using standard subroutines are added to the Fields list in the Field Selection Panel.

	Information
In the selection window for standard subroutines, some subroutines are marked with the icon . Such subroutines require either a license featureExtra package of standard subroutines or other specialized license feature, for example: Grain size evaluation, Sheet-bulk forming

Standard subroutines for Workpiece

Subroutine name	Comment
Surface flow analysis	A set of fields for evaluating possible defects on the workpiece surface
Temperature analysis	A set of fields for analyzing temperature changes in a workpiece
Flow lines outcrop	A set of fields for analyzing the angle at which a given initial fiber exits the surface of a workpiece
Pressure	A set of fields for analyzing pressure and friction at the contact
Forming limit diagram (FLD)	A set of fields for estimating probable defective zones in the Sheet-bulk forming operation
Grain size evolution	A set of fields for calculating grain evolution in the postprocessor. The parameters of the grain evolution model are set in the Deformed materials database
Damage model	A set of fields for estimation of damage accumulation by the workpiece material during deformation. The selection of damage models and the setting of their parameters is performed in Deformed materials database
Displacement	A set of fields for analyzing the movement of the workpiece material relative to the initial position
Element size	A set of fields for analyzing the finite element size and finite element mesh adaptation value
Slippage velocity	Field for analyzing the slippage velocity at the workpiece-tool contact
Strain tensor	Components of the strain tensor
Stress tensor	Components of the stress tensor
Thickness	Field for estimating the change in sheet thickness during deformation in the operation Sheet-bulk forming
Forging ratio	Conversion of accumulated plastic strain into a widely used indicator in production
Cylinder coordinate system	Conversion of vector and tensor fields to a cylinder coordinate system

Standard subroutines for Tools

Subroutine name	Comment
Pressure	A set of fields for analyzing pressure and friction at the contact
Wear	A set of fields for evaluating the wear of tool surfaces in contact with the workpiece
Element size	A set of fields for analyzing the finite element size and finite element mesh adaptation value
Strain tensor	Components of the strain tensor
Stress tensor	Components of the stress tensor
Fatigue	A set of fields for estimating fatigue strength of tools, number of cycles to failure. Outdated algorithm
Fatigue DB	A set of fields for estimating fatigue strength of tools, number of cycles to failure. The model parameters are set in the Tool materials database
Cylinder coordinate system	Conversion of vector and tensor fields to a cylinder coordinate system

	Information
Specialized subroutines are available when modeling an operation with the Extrusion type

Fields calculated using standard subroutines can be used in post-processor user subroutines. In this case, the required standard subroutine will be automatically added to the list of calculated subroutines if a field of one of the standard subroutines is requested in the code.
