Information |
The subroutines are available in early access mode as the simulation mode algorithm is already implemented, but work on the user subroutines is not completed |
|
With the help of the subroutine, the center of pressure on the workpiece side is calculated for each tool/workpiece at each simulation step.
Output fields
Field name |
Dimension |
Description |
|---|---|---|
Not provided |
Not provided |
The subroutines saves the simulation results for each tool into a separate text file. File with a template name "SBR-{номер операции}-{номер удара}-tool{номер инструмента}.csv' is saved in the *.data folder of the current project |
Simulation principles
The coordinates of the die pressure center are calculated using the following formulas:
Where:
- coordinates of the die pressure center for the tools;
- coordinates of the i-th workpiece node in contact with the tool;
- scalar product of the nodal force vector in contact with the tool by the unit vector of the tool motion direction;

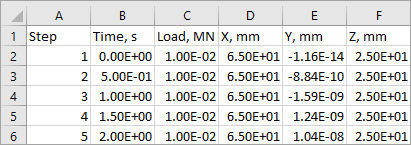

After the simulation, the csv-file can be opened in Excel. The results will be presented in this form:
