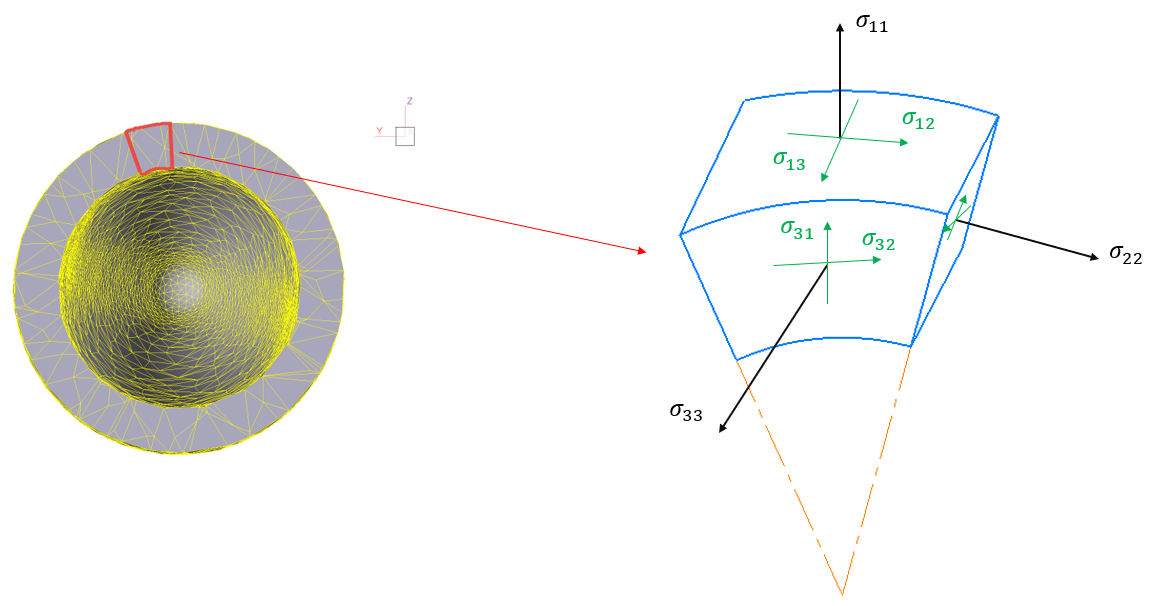

The Subroutine allows you to obtain fields of coordinates of points, as well as velocities, stresses, strains, pressures and friction forces in the nodes of workpiece (or tool) in a cylindrical coordinate system . In this case, the axis can be specified (or calculated by the software) in various ways (parameter 'center').
Parameters of the subroutine
Name of parameter |
Dimension |
Description |
|---|---|---|
dir_x, dir_y, dir_z |
Dimensionless |
Axial direction of the cylindrical coordinate system: 1 – this direction is taken as the axial direction for the cylindrical coordinate system |
centre |
Dimensionless |
0 – axial direction of the cylindrical coordinate system corresponds to the parameters 'dir' and 'origin'; 1 – axial direction corresponds to the real rotation axis of the object (calculated by the software for each step); 2 – axial direction is determined by the parameters 'dir', and the center of the coordinate system coincides with the center of gravity of the object (calculated by the software for each step); 3 – software calculates the axis of the object, assuming that it is axisymmetric; 4 – the object's own axis (previously specified) is used; 5 – the axis coincides with the line of intersection of 2 symmetry planes of the object (if they are created) |
origin_x, origin_y, origin_z |
mm |
Coordinates of the origin point of the cylindrical coordinate system relative to the absolute coordinate system |
Output fields
Field name |
Dimension |
Description |
|---|---|---|
coord_1, coord_2, coord_3 |
mm |
Coordinates of points: 1 – in the radial direction, 2 – in the tangential direction, 3 – in the axial direction |
vel_1, vel_2, vel_3 |
mm/s |
Point velocities : 1 – in the radial direction, 2 – in the tangential direction, 3 – in the axial direction |
stress_11, stress_22, stress_33 |
MPa |
Normal stress: 11 – in the radial direction, 22 – in the tangential direction, 33 – in the axial direction |
stress_12, stress_23, stress_31 |
MPa |
Tangential stresses: the first digit of the index – the action of stress is perpendicular to a given direction; second digit of the index - the action of stress is directed coaxially in this direction |
strain_11, strain_22, strain_33 |
Dimensionless |
Strain: 1 – in the radial direction, 2 – in the tangential direction, 3 – in the axial direction |
strain_12, strain_23, strain_31 |
Dimensionless |
Strain in the directions of shear |
press_1, press_2, press_3 |
MPa |
Surface pressure fields on the workpiece (or tool): 1 – in the radial direction, 2 – in the tangential direction, 3 – in the axial direction |
frict_1, frict_2, frict_3 |
MPa |
Surface fields of friction forces on the workpiece (or tool): 1 – in the radial direction, 2 – in the tangential direction, 3 – in the axial direction |
